TONEWINNER AD-3PRO+ / Class A Integrated amplifier - HIGH END
TONEWINNER AD-3PRO+ / Class A Integrated amplifier - HIGH END
- Switch to swap from Class A to Class AB
- Total harmonic distortion ≤ 0.05% USB Input
- Digital/Analogic Converter DAC ES9038
- Balanced and unbalanced inputs
Couldn't load pickup availability



THE HEART OF THE HIGH-FIDELITY
Direct evolution of the AD-1 and AD-2PRO models, this Tonewinner AD-3PRO+ is an integrated amplifier of 165 W on 8 ohms. Among its peculiarities is the option that allows you to switch from class A to class AB, for better performance depending on the type of music. Equipped with Toshiba transistors, this model is able to drive and support even the most demanding of speakers.
The device has the characteristics typical of the most modern amps. Starting with the frontal control display, to continue with the DAC ES9038, capable of handling the playback of files in high definition. And due to the balanced XLR and unbalanced RCA inputs, you can also take advantage of subwoofers.
Translating the whole into numbers, you get a total harmonic distortion less than or equal to 0.05%, with signal/noise ratio greater than or equivalent to 100 dB and response in frequency ranging between 15 Hz and 95 kHz. Data of all respect for a device easily installable in living rooms, listening rooms and clubs.

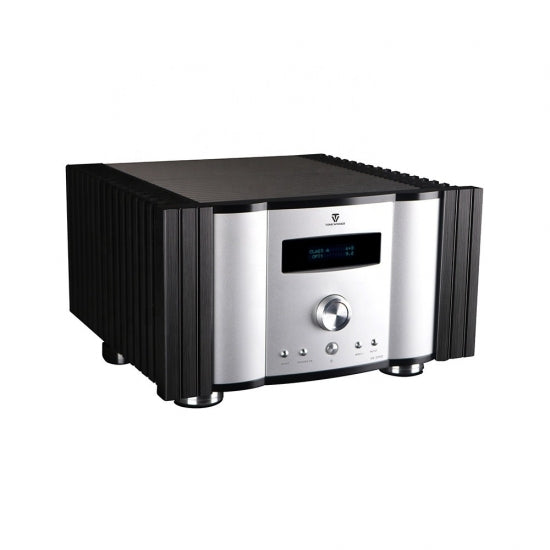

Outlined with the usual Tonewinner design, the front is dominated by the silverish/ white color and the black side sections, where we find sitting the dissipators, a help to regulate the internal temperature.
-
- Support DSD decoding bases on ES9038 chip, lossless audio formats are all supported.

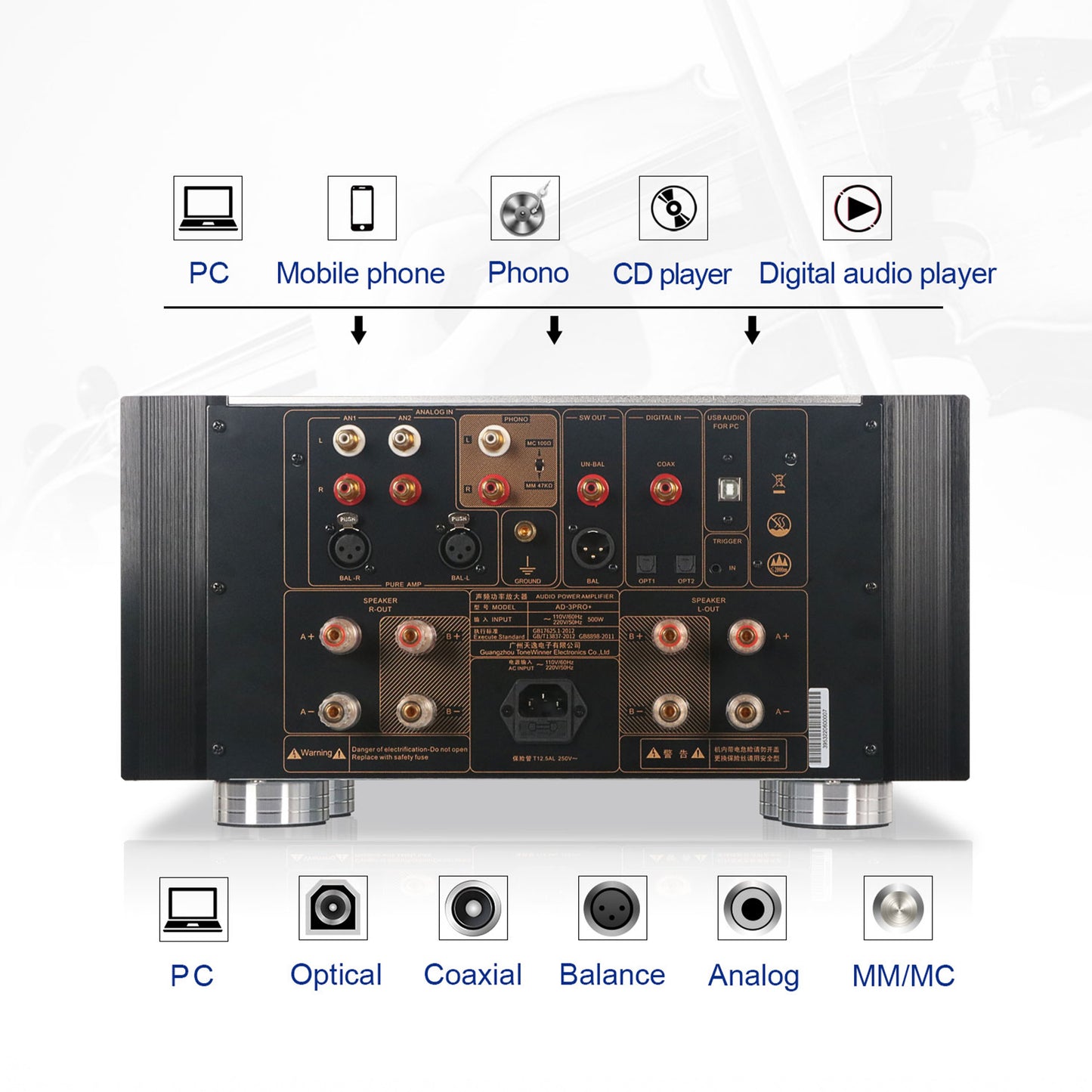

- Support kinds of inputs of USB , MM/MC, OPT, COAX, BALANCE, ANALOG etc.
- Support SW balance, unbalance output; Support double line crossover that favors audiophiles.
- Adopts the well known full balance amplifier circuit design, provide enjoyable sound quality.
- Adopts 600W big toroidal transformer and up to 80,000uF customize capacitors, uses 24pcs Toshiba transistors to guarantee enough power drive, can match with different world high end speakers.
- Internal mechanical design with independent and shield cabinets, makes nearly 0 ground noise.
PARAMETERS
Model AD-3PRO+
THD ≤0.05%(1kHz,normal working)
Channels 2.1SNR≥108dB(A weighted)
Frequency 15Hz-95kHz(+1/-3dB)
Standby power consumption<0.5WPower output2×165W (8Ω,1kHz,THD=1%,1 channel driven)
Impedance 8Ω
Gain 40dB ±1dB
Power consumption 260W-300W(Class A);70W-110W(Class AB)N.W.30.5kg
Dimension Size 444x460x226mm(W×D×H)
